Overview

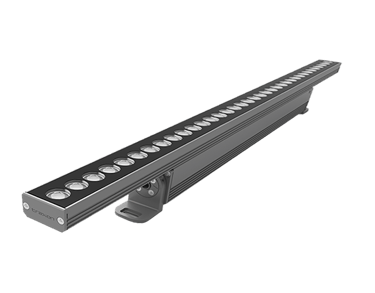

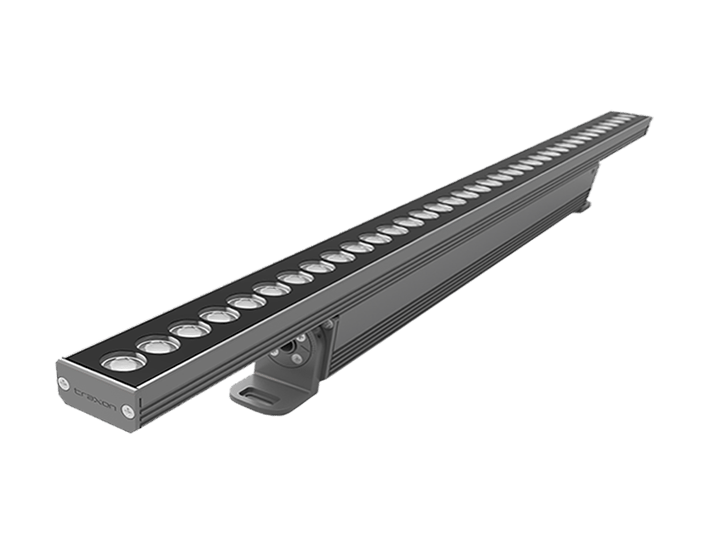

A high powered and efficient solution designed for exterior architectural linear color changing or white façade grazing and linear washing applications.

• Universal Input Voltage: 120-277vAC

• Controlled via DMX512 with Remote Device Management (RDM)

• Active temperature monitoring

• Configurable control segments for flexible installation and management of data

• IK07 Impact Rating

• IP66 and suitable for Coastal Environments

• Wind & Vibration standard conforming to IEC 60598-2-3:2002 / ANSI 3G

CCT Options

• 3000K & 4000K as standard CCT options, with 2700K and 5700K also available

• Dynamic White, 2700K-5700K

• Full color RGB plus a 3000K White for precise color changing effects

  • RGBA available by request

DynaMood® Technologies:

• AddressOne – Intelligent algorithm for auto addressing

• BinOne – Advanced process for the color calibration

• BoostOne – Intelligent algorithm maximizes light output

Family Design

Consistent design in 1ft (15W) & 4ft (55W)

Control & Interconnection

• Easy daisy-chain IN/OUT connectors

• User configurable control segments (1ft) for flexible installation

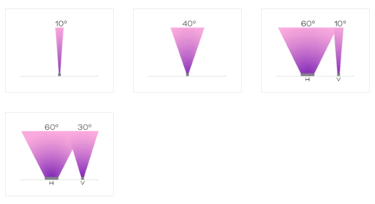

Beam Angles
