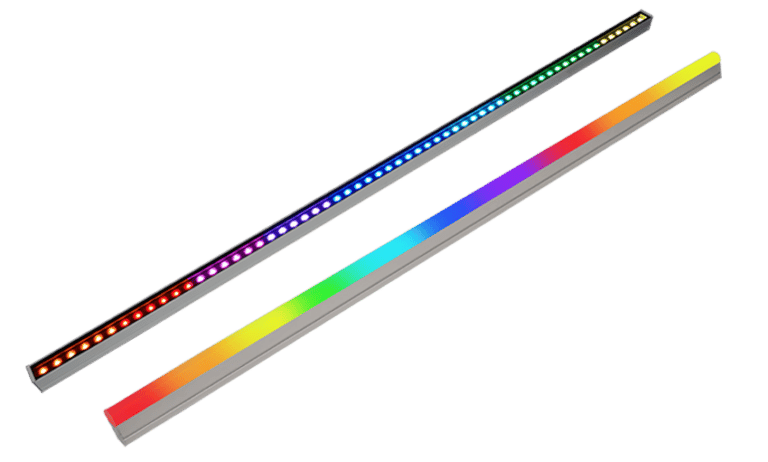

Allegro Media Tube® Lite
A high brightness, slim media solution designed to integrate into a facade, outline buildings, or trace lines of architectural surfaces.
Overview
3.9” / 100mm pixel pitch
Slim Profile at 1” / 25mm
DMX Controlled with auto-addressing
IP66 and suitable for Coastal Environments
IK09 (Diffused View)
ANSI 3G Vibration Rated for bridges
Daisy-Chain topology with quick-lock connectors simplifies and speeds up installation
Flexible mounting
Factory-configurable pixel-controlled segments for flexible installation
Color options
Dynamic White 2700K – 6500K
Full color RGBW (W=6500K) for vivid color and white content
Full color RGB
Length Options
Available in 1’ and 4’ lengths with 3 pixels or 12 pixels per tube
Lens Options
Clear View – 90°
Diffused View – 115°x170°
Allegro Media Tube® Lite fits into any wall, façade or media lighting application with tight installation requirements, while the wide beam angle output and 10-pixels-per-meter ensures a smooth illumination experience. Featuring auto addressing and quick lock connectivity, this greatly simplifies the lighting installation for building façades, media applications, bridges and more.
