Overview

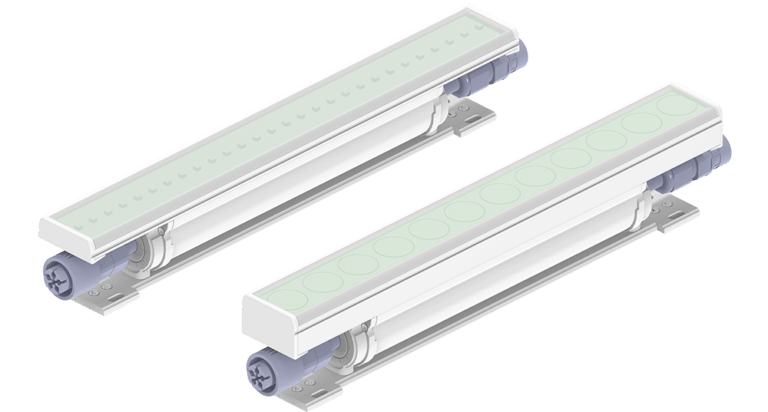

The Traxon Cove Light Plus is an AC powered, slim, high brightness profile that effortlessly integrates into any interior or damp architectural setting. Featuring 0-10v, DMX or RDM control, RGBW, White CCT and Dynamic White color options and a wide range of optical choices, its elegant modular design conceals powerful LED technology, allowing you to create a soft, uniform glow that bathes your surroundings in a captivating, gentle radiance.

• Universal Input Voltage: 120-277vAC 50/60 Hz

• 4 Power Options for DMX/RDM: 3W, 5W, 8W & 12W per 300mm (1′)

• 4 Power Options for 0-10V: 3W, 5W, 8W & 10W per 300mm (1′)

• DMX, DMX/RDM or 0-10v Control

• Quad and Discrete RGBW packages to deliver color exactly as your design needs

• Simple installation and maintenance

• IP40, Dry/Damp locations

Color Options

• RGBW (W=3K / 4K) Discrete & Quad, White CCTs

• 2200K

• 2700K

• 3000K

• 3500K

• 4000K

• 5700K

• 6500K

• DW (2200K – 5700K)

*MOQ’s may apply, see your Traxon representative for more information.

Length Options

• 300mm

• 600mm

• 900mm

• 1200mm

Mounting Options

• Clip Mount

• Clip Mount with Track

• Track Mount

Optical Accessory Options

• Louver (ASYM/SYM)

• Honeycomb Louver

• Louver Plate

• Optical Film

• Optical Lens (Clear/Frosted)

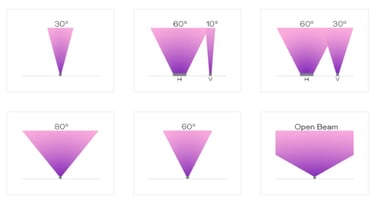

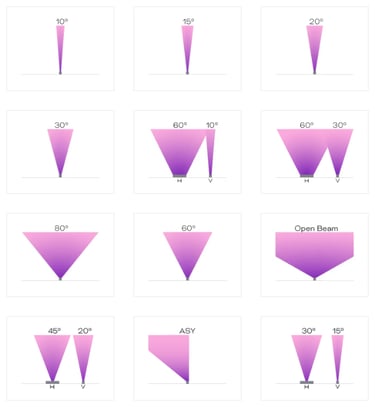

Beam Angles
