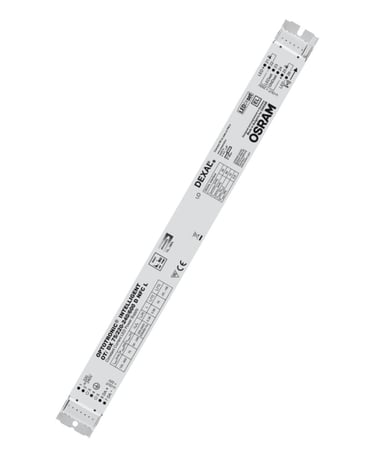

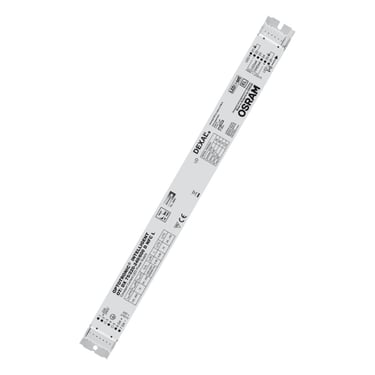

Overview

Product family features

• Line frequency: 0 Hz | 50 Hz | 60 Hz

• Supply voltage: 220…240 V

• Constant Lumen Output (CLO)

• Monitoring of luminaire operating parameters

• Non-isolated drivers

Product family benefits

• Versatile non-isolated DEXAL LED driver up to 75 W due to flexible output characteristic

• Integrated DEXAL Bus power supply for sensors and wireless radios

• Simplified luminaire design for wireless lighting control system and sensors

• Locking and unlocking of luminaire/driver data

• Advanced luminaire/driver data (power, energy, operating hours…) for analytics

• Prepared for DiiA Specification Parts -250, -251, -252 and -253

• Fully programmable via T4T software (NFC, DALI Interface)

• Very high efficiency

• Protection against 4 kV burst and 1.5 kV surge voltage (L-N)

• Wide operating range up to 600 mA

Areas of application

• Linear lighting for office, education, industry, storage areas and retail

• DEXAL, easy connection to different partner BMS systems

• Suitable for "Works with OSRAM DEXAL" partner components

• Suitable for luminaires of protection class I

Ecodesign regulation information:

Intended for use with LED modules.

The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
