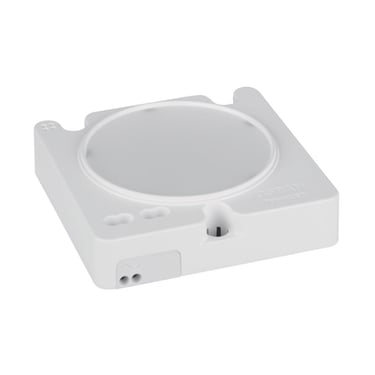

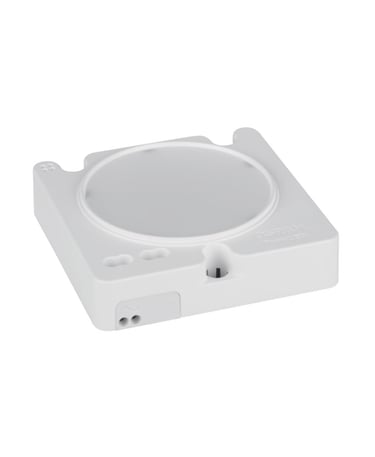

PrevaLED Cube AC G4

Overview

Product family features

• Mains voltage driven LED engine

• Integrated control gear

• Diameter of light emitting surface: 61 mm

• Common mechanic and photometric interfaces

• Initial color consistency: < 3 SDCM

• Lifetime (L70/B50): 50,000 h (temperature at Tc = 70 °C)

• LED module is reinforced isolated to mounting surface

• Photobiological safety according to IEC/TR 62778, risk group RG1

Product family benefits

• Enables low-cost and compact luminaire designs

• Low profile

• Future-proof dimensions for reliable designs

• Near Lambertian light distribution at 110° beam angle for high quality of light

• Protection against overheating due to thermal derating

• 5 year guarantee

Areas of application

• Suitable for diffuser and reflector luminaires

• Hospitality, hotels, restaurants

• Public and commercial buildings

• Offices

• Secondary rooms, garages, storerooms, cellars

Ecodesign regulation information:

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
