Overview

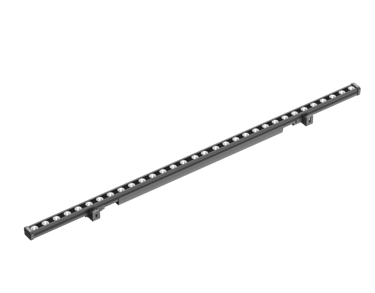

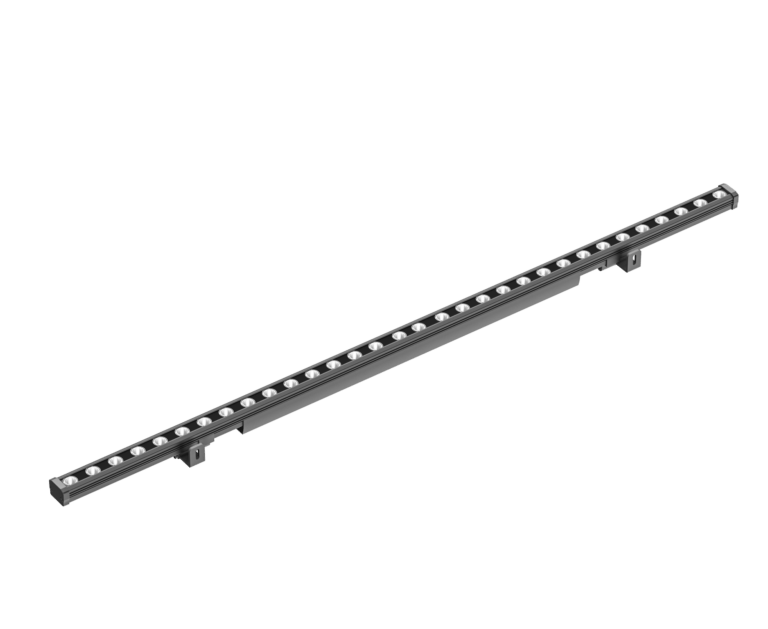

The Traxon Linear Go Midi is a DC line powered exterior luminaire used to distinguish facades, walls, and architectural landmarks with a powerful, even color wash effect. Linear Go’s high-value design features efficient electrical and optical systems, making it ideal for budget-conscious projects. This product is intended for use in high-quality colored light applications.

• DMX Control and On/Off versions

• DMX addressing with the TX Smart Addresser

• Quick installation and waterproof connectors on all data and power lines

• IP66 and suitable for Coastal Environments

• IK07

• ANSI 3G Vibration Rating

• Color Options

  • RGBW (W=4000K), 2700K, 3000K, 4000K, 5700K, 6500K Standard

  • RGB, DW (2700K+5700K) Optional

  Length Options

  • 0.32m (1ft)

  • 0.6m (2ft)

  • 0.9m (3ft)

  • 1.2m (4ft)

  Beam Angles

  • Mini – RGBW:

    • 35°, 45°, 45°x35°

  • Mini – White:

    • 20°, 30°, 40°, 55°x20°

  • Midi – RGBW:

    • 25°, 35°, 45°x20°

  • Midi – White:

    • 12°, 30°, 45°, 55°, 30°x15°, 55°x15°

  • Maxi – RGBW/White:

    • 12°, 30°, 45°, 55°, 30°x15°, 55°x15°

Size/Wattage Options

• Mini*:

  • 4.5W/0.3m (1ft) DC24V

• Midi:

  • 8W/0.3m (1ft) DC24V

• Maxi DC:

  • 15W/0.3m (1ft) DC24V (CE) or 12W/0.3m (1ft) DC24V (CE or ETL)

• Maxi (Coming Soon):

  • 15W/0.3m (1ft) AC 220-240V (CE)

  • 12W/0.3m (1ft) AC 120-277V (ETL)

*Mini: 3.4W per foot available, meets ASHRAE 90.1-2022 Zone 3 requirements.
