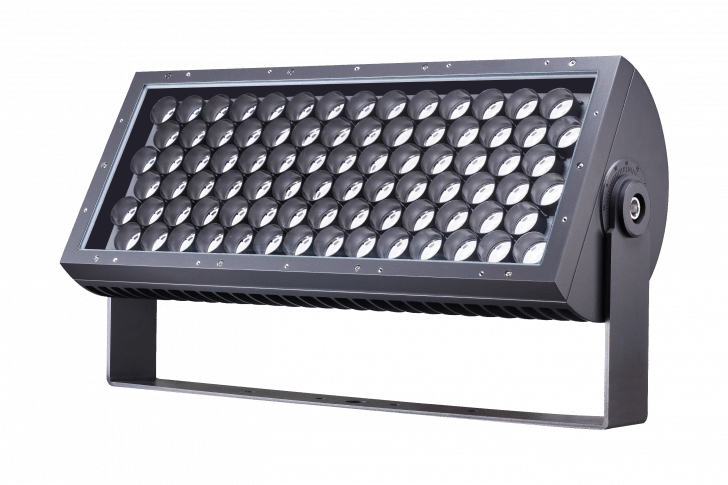

Vista Plus
A powerful exterior luminaire designed for large architectural facades.
Overview
Controllable via DMX512 with Remote Device Management (RDM)
Connected using a daisy chain topology, allowing easy installation to form long run lengths
Universal Input Voltage – 100-277vAC
IP66 and suitable for Coastal Environments
ANSI 3G Vibration Rated
IK08 Impact Rating
Internal Louver (standard) directs light and reduces glare
Glare Shield, Half Glare, Rock Shield available
CCT Options
Available in 3000K & 4000K
2700K, 5000K, 6500K, Red, Green, Blue, & Amber available as custom options
Full color RGB plus a 4000K White for precise color changing effects, Amber available as a custom option
Wattage Outputs
1x100W, 2x100W & 3x100w
200W & 400W
Finish Options
Traxon Gray (RAL7015)
Black (RAL9005)
White (RAL 9003)

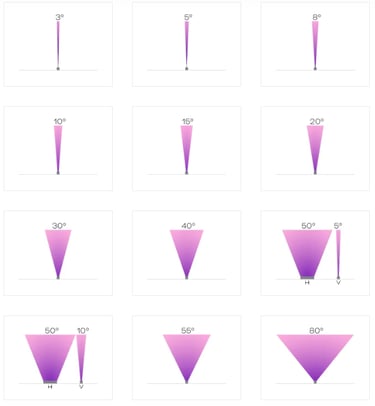

Beam Angles
